1.Current Status of Transportation Oversight

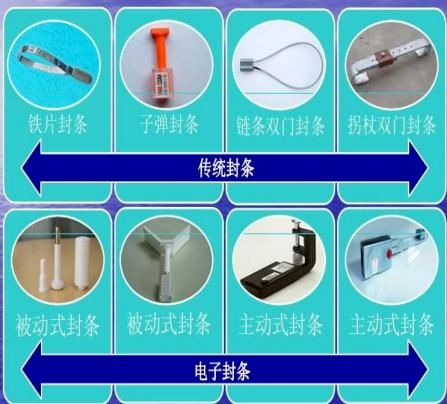

Currently, the process control for hazardous materials transport relies on traditional physical lead seals, which present the following challenges:Traditional single-use seals lack high mechanical strength, are vulnerable to external forces, and their tampering may go undetected after the fact.They provide no remote, real-time monitoring or proactive protection against illegal or violent attempts to open the tank hatch, making it difficult to implement digital management.Single-use seals are vulnerable to both duplication and non-destructive tampering, offering little genuine security.During transport, there's a direct risk of theft and material loss, as well as an indirect risk of safety incidents due to potential leaks caused by theft.

2.Purpose of the industry_application

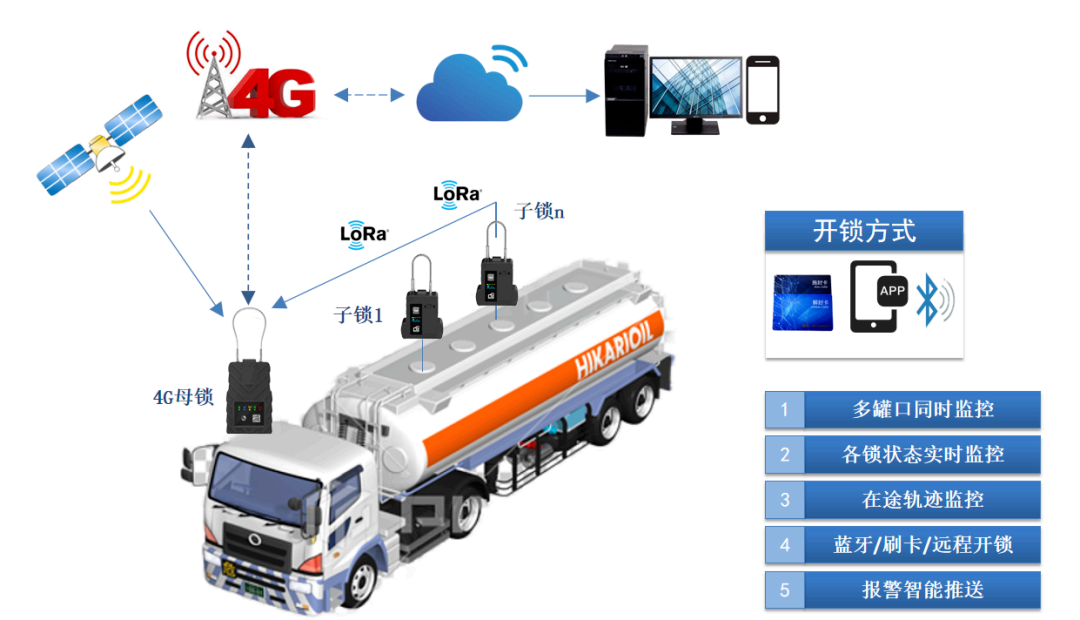

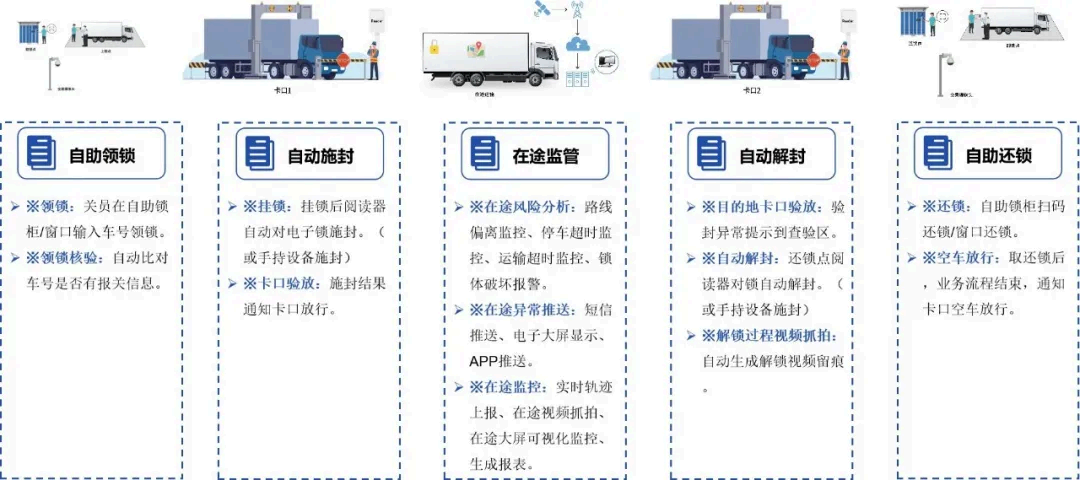

3.Oversight Workflow

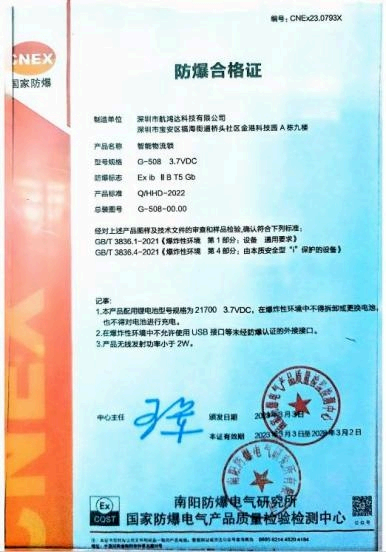

4.Explosion-Proof Certificate for Logistics Security Locks

5.Products & Applications

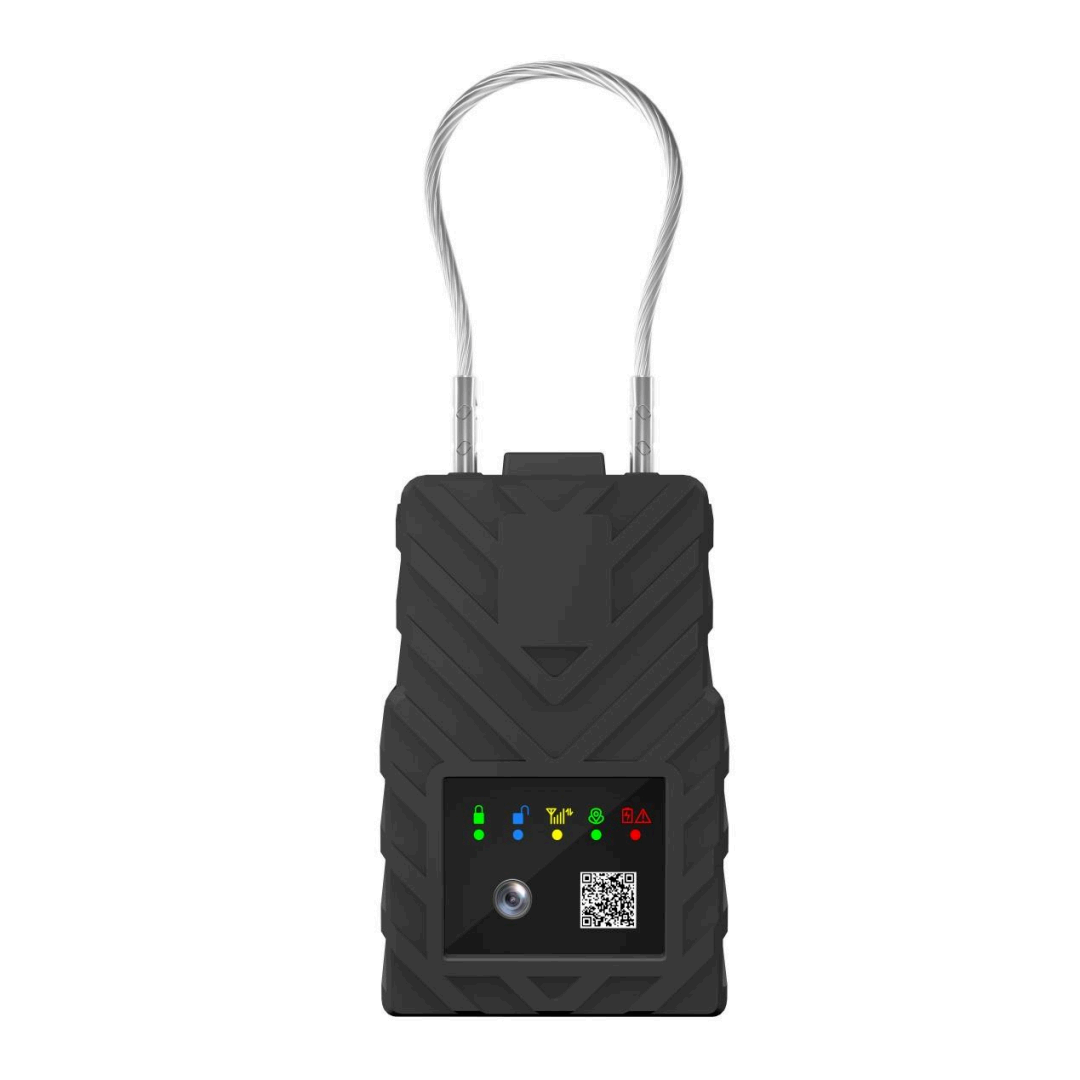

Explosion-Proof Smart Video Lock Specifications (Main Unit)

1.Explosion Protection Marking: Ex ib II B T5 Gb

2.Supports intelligent photo and video recording features.

3.Supports Beidou real-time positioning.

4.Supports 4G communication.

5.Supports tamper alerts, route deviation alerts, unscheduled stop alerts, and transport timeout alerts.

6.Supports IC card, Web, and App-based unlocking, as well as geofence unlocking.

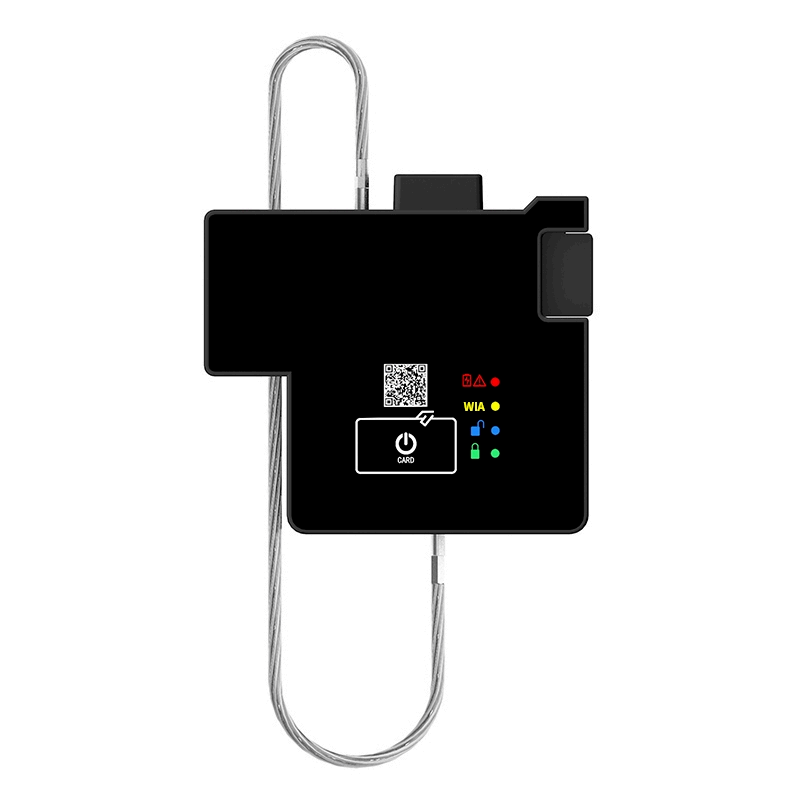

Explosion-Proof Smart Video Lock Specifications (Sub-Unit)

1.Installation Area:Valves, discharge boxes, and manhole covers of hazardous materials tanker trucks.

2.Locking Mechanism:Features a self-tightening steel cable designed to adapt to various complex locking scenarios.

3.Unlocking Mechanism:he steel cable can be retracted for reusability.

4.Casing: Aluminum alloy

5.Protection Rating: IP67

6.Battery Capacity: 4000mAh Lithium Thionyl Chloride battery

7.Battery Voltage: 3.6V

8.Wireless Frequency: 923MHz/433MHz

9.Wireless Communication Range: >100 meters

10.Standby Time: >5 years

11.Product Design Life: >5 years in outdoor conditions

12.Alerts:Lock Pin Tamper Alert: Real-time alert upon cutting.Casing Tamper Alert: Real-time alert if the casing is opened.Lock Pin Status Detection: The lock pin includes switch detection.

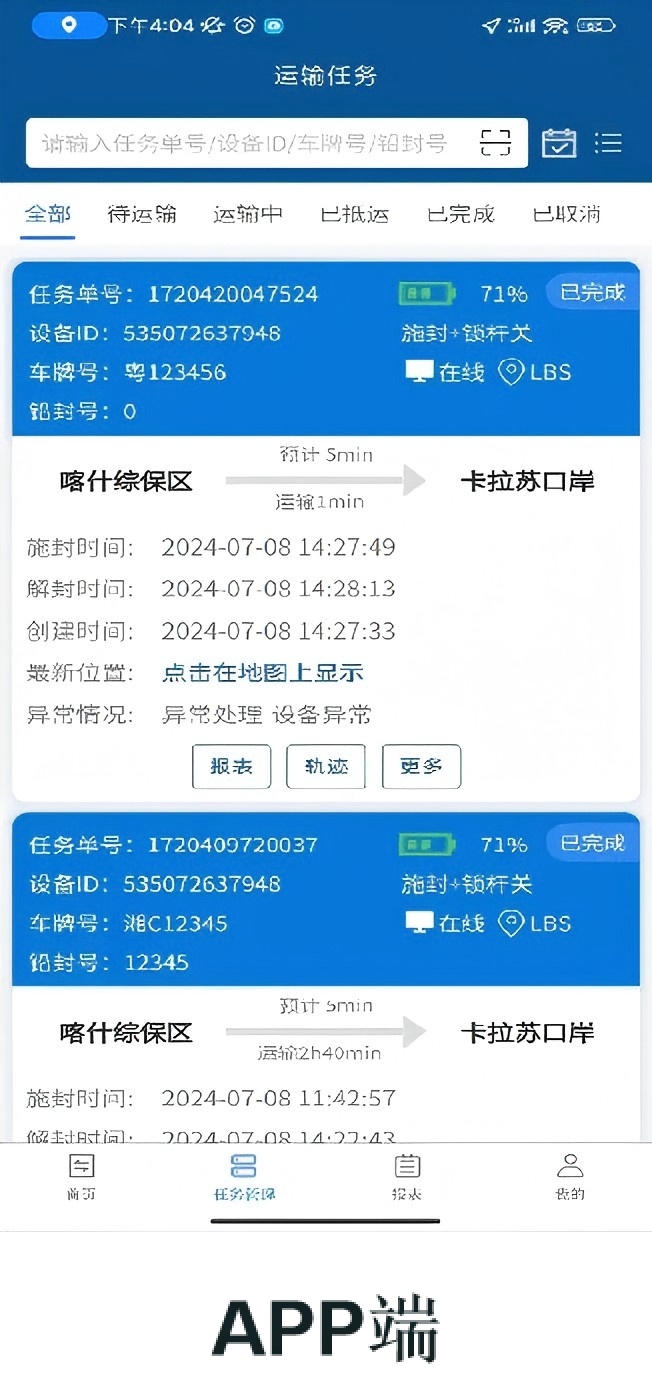

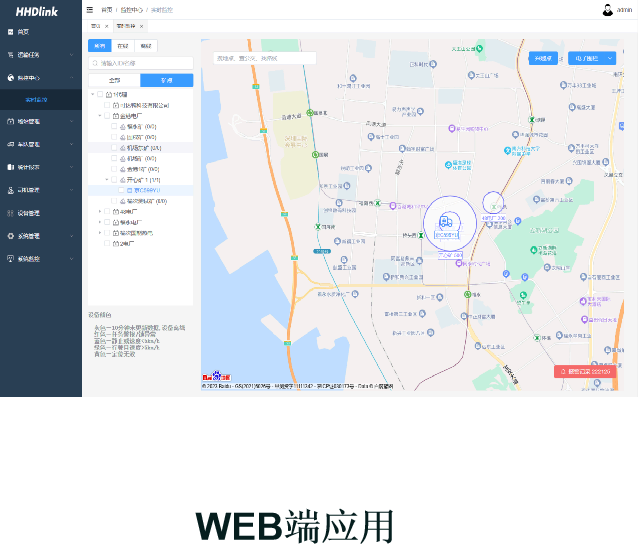

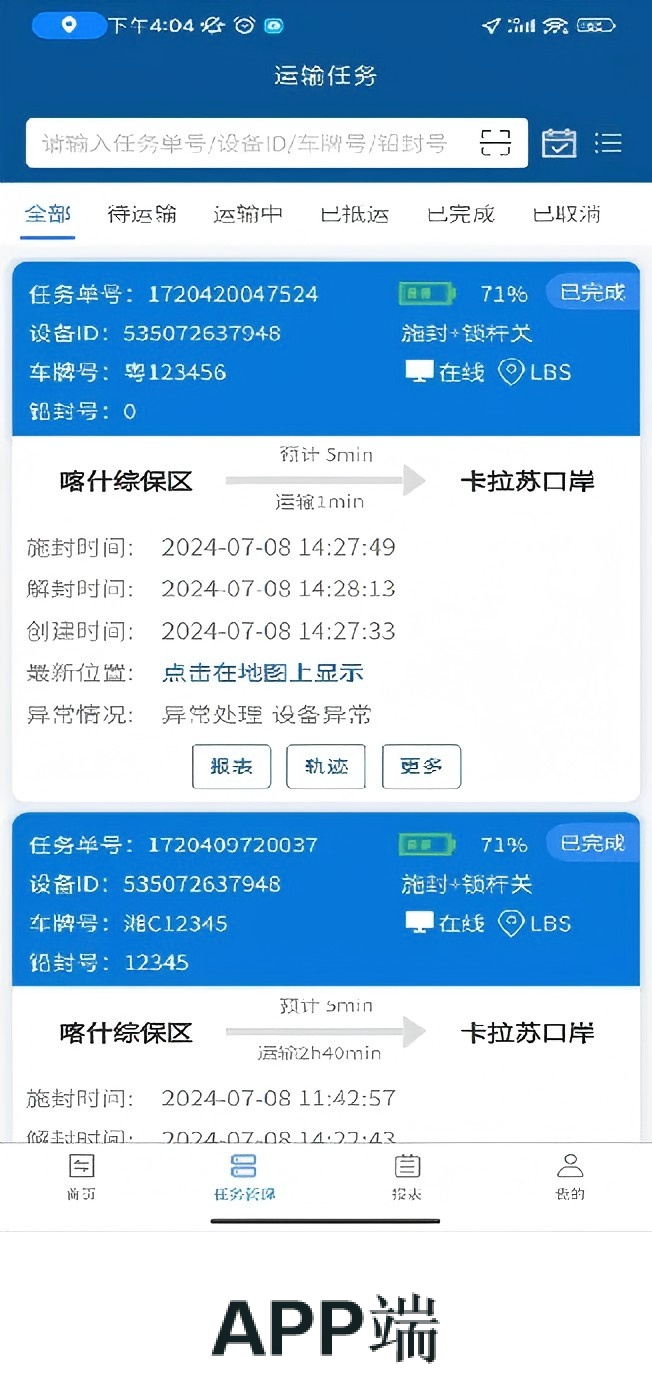

6.Monitoring and Control Platform Overview
